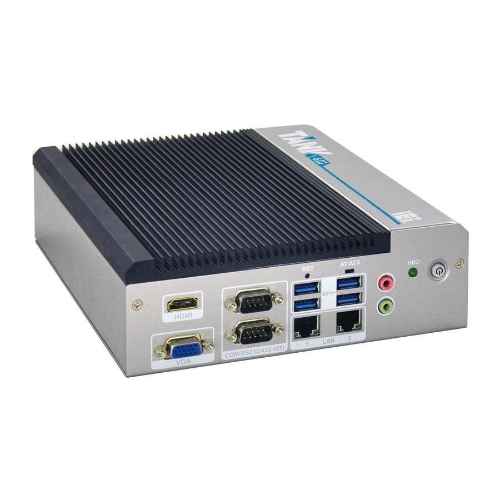

TANK-610-BW Fanless Embedded PC

  • Intel® Celeron® N3160 Quad Core Processor up to 2.24GHz
  • 2GB DDR3L 1600MHz SO-DIMM Memory
  • 32GB Industrial Grade mSATA Solid State Drive
  • 4x USB3.0 Port
  • 6x RS-232 and 2x RS-232/422/485 Port
  • 2x Gigabit Ethernet Port
  • 4°F ~ +140°F Wide Operating Temperature
Status: 1 to 2 Weeks Lead-Time
$605.00
Product tags

TANK-610-BW is wide range temperature industrial fanless embedded PC which supports Intel Celeron N3160 quad core processor. It supports maximum 8GB DDR3L SO-DIMM memory, HDMI and VGA dual display, six RS-232 and two RS-232/422/485 ports, four USB3.0 ports, two Gigabit Ethernet LAN ports, two PCIe Mini slot. TANK-610-BW is suitable for a wide range of industrial applications in the market, such as POS, Kiosk, ATM, Thin Servers, diskless workstations, building automation, project screens for department stores and supermarket, tour bus displays and much more.

Datasheet: TANK-610-BW Fanless Embedded PC

TANK-610-BW is wide range temperature industrial fanless embedded PC which supports Intel Celeron N3160 quad core processor. It supports maximum 8GB DDR3L SO-DIMM memory, HDMI and VGA dual display, six RS-232 and two RS-232/422/485 ports, four USB3.0 ports, two Gigabit Ethernet LAN ports, two PCIe Mini slot. TANK-610-BW is suitable for a wide range of industrial applications in the market, such as POS, Kiosk, ATM, Thin Servers, diskless workstations, building automation, project screens for department stores and supermarket, tour bus displays and much more.

Datasheet: TANK-610-BW Fanless Embedded PC

PRICE BREAKS - The more you buy, the more you save
Quantity
1+
5+
10+
Price Starting From
$605.00
$585.00
$575.00
Products Specifications
Chassis Color Black C + Silver
Dimensions (WxDxH) 7.24" x 7.90" x 2.29" / 184mm x 200.6mm x 58.2mm
Chassis System Fan Fanless
Chassis Construction Extruded Aluminum Alloys
CPU Intel® Braswell Celeron®
Chipset SoC
Memory 2GB DDR3L SO-DIMM
Max Memory 8GB DDR3L SO-DIMM
Hard Drive 1x 2.5" SATA 6Gb/s Hard Drive Bay
mSATA 1 x mSATA (SATA 3Gb/s)
USB 3.0 Port 4x USB3.0
Gigabit LAN Port 2x Gigabit LAN Port (RJ-45)
RS232 COM Port 6x RS232 (DB9)
RS232/422/485 COM Port 2x RS232/422/485 (DB9)
Antenna Hole 2x SMA Type Connector Opening for Antenna
Display HDMI: 3840 x 2160
VGA: 2560 x 1600
Audio 1x Line-Out, 1x Mic-In
Wireless 802.11b/g/n (Optional)
Expansions 1x Full-Size Mini PCIe Slot (Support mSATA)
1x Half-Size Mini PCIe Slot
Power Input 12VDC Power Input
Mounting Wall Mount
VESA 100
Operating Temperature 4°F ~ +140°F (-20°C ~ +60°C) (with Wide Temperature SSD & DRAM)
Operating Shock Half-Sine Wave Shock 5G, 11ms, 100 Shocks per Axis
Operating Vibration MIL-STD-810G 514.6C-1 (with SSD)
Weight (Net/Gross) 4.85 lbs / 6.61 lbs (2.2 Kg / 3 Kg)
Safety/EMC CE/FCC
Supported OS Microsoft® Windows® 8 Embedded
Microsoft® Windows® Embedded Standard 7 E
