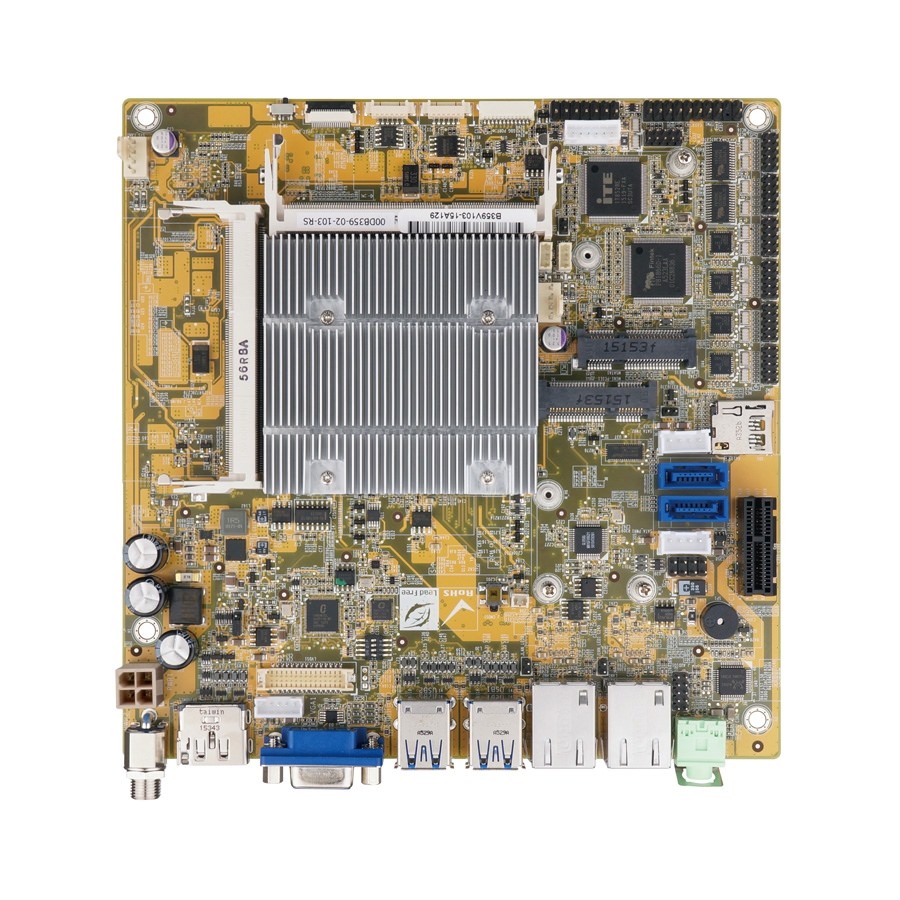

tKINO-BW Industrial Mini-ITX Motherboard

  • Support Braswell IntelĀ® Pentium/Celeron SoC Processor
  • 2x 204-pin DDR3L SDRAM SO-DIMMs (Max. 8GB)
  • 2x Gigabit Ethernet Controller
  • 4x RS-232 and 2x RS-232/422/485 Port
  • Support Triple Independent Display (VGA/LVDS/DP+HDMI)
  • Support 9~30V Wide Range DC Power Input
Status: 4 to 8 Weeks Lead-Time
$369.00

tKINO-BW is a thin industrial Mini-ITX motherboard with Intel Braswell Pentium/Celeron SoC processor, dual channel DDR3L 1600MHz memory up to 8GB, four USB3.0 ports, two USB2.0 ports, six COM ports, two SATA 6.0Gbps. It also supports VGA/LVDS/DP+HDIM triple independent display. It is ideal for space and reliability concernd applications.

tKINO-BW is a thin industrial Mini-ITX motherboard with Intel Braswell Pentium/Celeron SoC processor, dual channel DDR3L 1600MHz memory up to 8GB, four USB3.0 ports, two USB2.0 ports, six COM ports, two SATA 6.0Gbps. It also supports VGA/LVDS/DP+HDIM triple independent display. It is ideal for space and reliability concernd applications.

Products Specifications
Attribute nameAttribute value
CPUIntel® Braswell Pentium®
Memory2x 204-pin DDR3L 1600/1333MHz DIMMs
Max Memory8GB
BIOSUEFI
Graphics EngineIntel® HD Integrated Graphics
Display Interface1x HDMI/DP up to 3840x2160@30Hz
1x VGA up to 1920x1200@60Hz
1x 18/24-bit Dual Channel LVDS up to 1920x1200@60Hz
LAN2x Gigabit Ethernet LAN Port
RS-2324x RS-232
RS-232/422/4852x RS232/422/485
USB3.04x USB3.0
USB2.02x USB2.0
SATA 6Gb/s2x SATA 6Gb/s Port
Expansion1x PCIe x1
1x Full-Size PCIe Mini Slot
1x MicroSD Card Slot
SMBus1 x 4-Pin Wafer
Digital I/O8-bit Digital I/O (4-bit Input, 4-bit Output)
Watchdog TimerSoftware Programmable supports 1~255 Sec. System Reset
Operating Temperature-4°F ~ 140°F (-20°C ~ 60°C)
Humidity5% ~ 95% Relative Humidity, Non-Condensing
Dimensions6.69" x 6.69" (170mm x 170mm)
Weight (Net/Gross)0.88 lbs / 1.98 lbs (0.4 Kg / 0.9 Kg)
