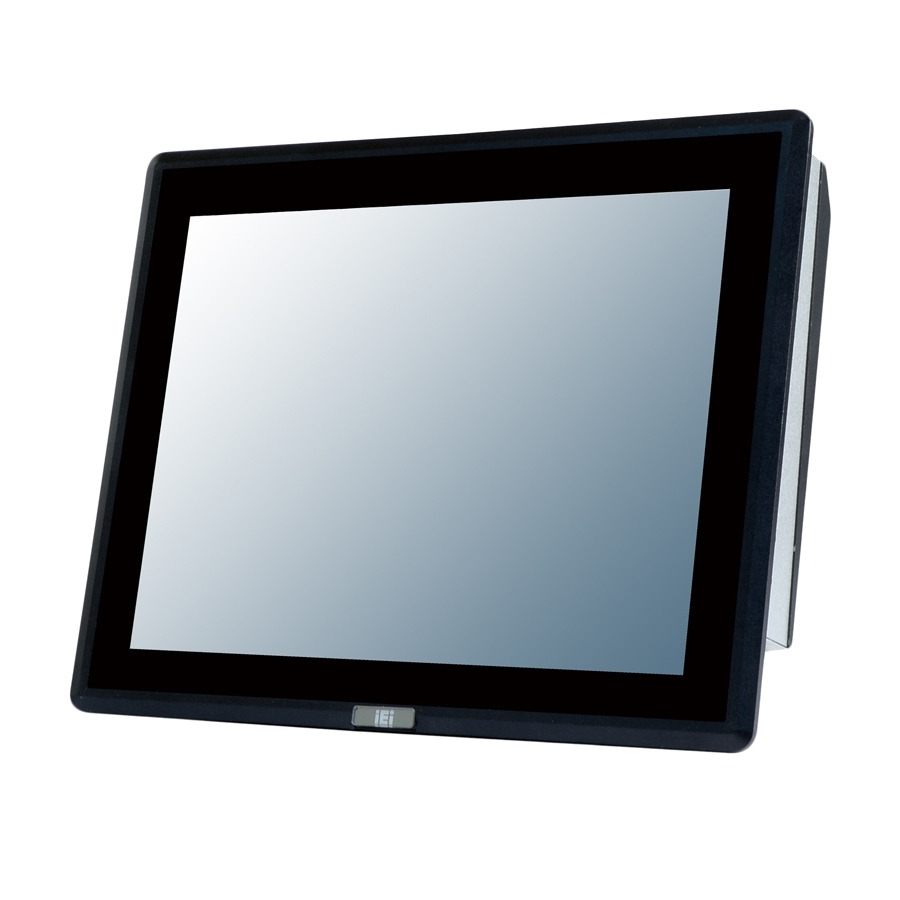

PPC-F15A-H81 15" Industrial Touch Panel PC

  • 15" 1024x768 400nits TFT LCD with Resistive Touch Screen
  • Intel® Pentium® G3220 3.0GHz Processor
  • Support Intel® 4th Generation Haswell Core™ i Processor
  • 320GB 2.5" 5.4K RPM SATA Hard Drive
  • 4GB DDR3 1600MHz SO-DIMM Memory
  • Robust Aluminum Front Bezel and Sheet Metal Casing
  • 2x PCIe Mini Slot
  • IP65 Compliant Front Bezel
Status: 4 to 8 Weeks Lead-Time

IEI iRIS (IEI Remote Intelligent System) is a remote control technology which is IPMI 2.0 compliant. IPMI (Intelligent Platform Management Interface) is a standardized computer system interface for Out-of-Band Management of computer systems and monitoring of their operation. It allows managing power-off or unresponsive systems through network. iRIS is hardware-level remote control technology, so you don’t need go into operating system (OS) or login shell in order to implement remote control.

$1,909.00

PPC-F15A-H81 is a high performance and power efficient industrial touch panel PC which supports LGA1150 Intel 4th generation Haswell Core i7/i5/i3/Pentium processor, 15" 1024x768 LED backlight resistive touch screen, two gigabit Ethernet ports, optional IEEE802.11b/g/n wireless module, two USB3.0 ports, four USB2.0 ports and five COM ports. It also supports Microsoft Windows 7 operating systems. PPC-F15A-H81 is suitable for a wide range of industrial and commercial applications in the market, such as POS, Kiosk and building automation systems.

PPC-F15A-H81 is a high performance and power efficient industrial touch panel PC which supports LGA1150 Intel 4th generation Haswell Core i7/i5/i3/Pentium processor, 15" 1024x768 LED backlight resistive touch screen, two gigabit Ethernet ports, optional IEEE802.11b/g/n wireless module, two USB3.0 ports, four USB2.0 ports and five COM ports. It also supports Microsoft Windows 7 operating systems. PPC-F15A-H81 is suitable for a wide range of industrial and commercial applications in the market, such as POS, Kiosk and building automation systems.

Products Specifications
Attribute nameAttribute value
LCD Size15"
Max Resolution1024 x 768
Brightness400nits
Contrast Ratio700:1
LCD Color16.2M
Pixel Pitch (mm)0.29(H) x 0.29(V)
Viewing Angle (H-V)160º(H) / 140º(V)
Backlight MTBF50000 hrs
Touch Screen5-Wire Resistive Type or Projected Capacitive Type Touch Screen
Touch ControllerPenmount 6000 / EETI EXC7200
CPUIntel® 4th Gen Core™ i5/i3/Pentium Processor
ChipsetIntel® H81
Memory4GB DDR3 SO-DIMM
Max Memory16GB DDR3 SO-DIMM
RS232 COM Port4x RS232 (DB9)
RS232/422/485 COM Port1x RS232/422/485 (DB9)
USB 3.0 Port2x USB 3.0
USB 2.0 Port4x USB 2.0
Gigabit LAN Port2x Gigabit LAN Port (RJ-45)
Expansion2 x PCIe Mini Card
Hard Drive Bay1x 2.5" SATA 3Gb/s Hard Drive Bay
SSDmSATA
Construction MaterialAluminum Die-Casting Front Panel, Heavy-duty Steel (SECC) Body
MountingPanel, Wall, Stand, Rack and Arm VESA 100mm x 100mm
Front Panel ColorBlack C
Dimension (WxHxD)14.9" x 11.93" x 2.59" / 378.5mm x 303mm x 65.7mm
Weight12.35 lbs / 5.6 Kg
Operating Temperature14°F ~ 122°F (-10°C~50°C)
Storage Temperature-4°F ~ 140°F (-20°C~60°C)
IP LevelIP65 Compliant Front Panel
Power Supply220W AC Power Supply Input: 90V~264VAC, 50/60Hz
