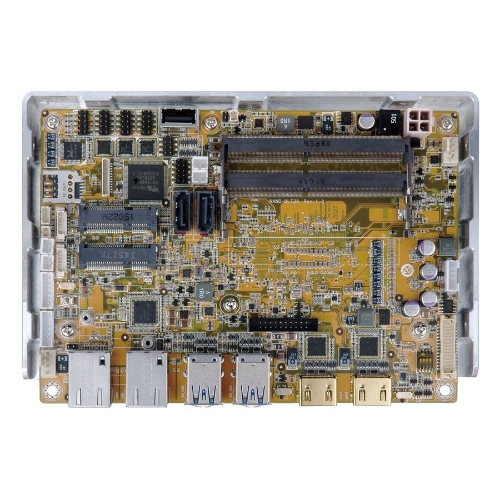

NANO-ULT3 EPIC Embedded Board

  • 6th Gen Intel® Skylake ULT Core™ i7/i5/i3 On-Board Processor
  • 2x 260-pin DDR4 SO-DIMM (Max. 32GB)
  • 2x Gigabit Ethernet Controller
  • 4x USB3.0 Port
  • 2x RS-232 Port and 1x RS-422/485 Port
  • Triple Display: Dual HDMI/LVDS/iDP w/4K Support
Status: 1 to 2 Weeks Lead-Time
$419.00
Product tags

NANO-ULT3 is an EPIC form factor embedded board which supports Intel 6th generation Skylake Mobile ULT Core i7/i5/i3/Celeron on-board processor, DDR4 2133/1866MHz memory up to 32GB, dual HDMI, LVDS and iDP three display ports with 4K support, four USB3.0 ports, three COM ports and two SATA 6.0Gbps ports. It is ideal for high performance and space concernd applications.

NANO-ULT3 is an EPIC form factor embedded board which supports Intel 6th generation Skylake Mobile ULT Core i7/i5/i3/Celeron on-board processor, DDR4 2133/1866MHz memory up to 32GB, dual HDMI, LVDS and iDP three display ports with 4K support, four USB3.0 ports, three COM ports and two SATA 6.0Gbps ports. It is ideal for high performance and space concernd applications.

Products Specifications
CPU Intel® 6th Gen Core™ i Mobile
Chipset SoC Integrated
Memory 2x 260-pin DDR4 2133/1866MHz SO-DIMMs
Max Memory 32GB
BIOS AMI UEFI
Graphics Engine Intel® HD Integrated Graphics
Display Interface 2x HDMI (Up to 4096x2160@24Hz)
1x 18/24-bit Dual-Channel LVDS (Up to 1920x1200@60Hz)
1x iDP Interface (Up to 4096x2304@60Hz) (Colay with HDMI1)
LAN 2x Gigabit Ethernet LAN Port
iAMT (Intel Active Management Technology) iAMT 11.0
RS-232 2x RS-232
RS-232/422/485 1x RS232/422/485
USB3.0 4x USB3.0
USB2.0 3x USB2.0
SATA 6Gb/s 2x SATA 6Gb/s Port
Expansion 1x Full-Size PCIe Mini Slot (with SIM Holder & mSATA Support)
1x Half-Size PCIe Mini Slot
SMBus 1 x 4-Pin Wafer
Digital I/O 8-bit Digital I/O (4-bit Input, 4-bit Output)
Fan Connector 1x CPU Fan Connector (1x 4 Pin)
1x System Fan Connector (1x 4 Pin)
Audio Realtek ALC662 HD Audio Codec
Watchdog Timer Software Programmable supports 1~255 Sec. System Reset
Power Supply 12V DC Input Only
Operating Temperature -4°F ~ 140°F (-20°C ~ 60°C)
Humidity 5% ~ 95% Relative Humidity, Non-Condensing
Dimensions 4.53" x 6.50"
Weight (Net/Gross) 0.77 lbs / 1.87 lbs (0.35 Kg / 0.85 Kg)
