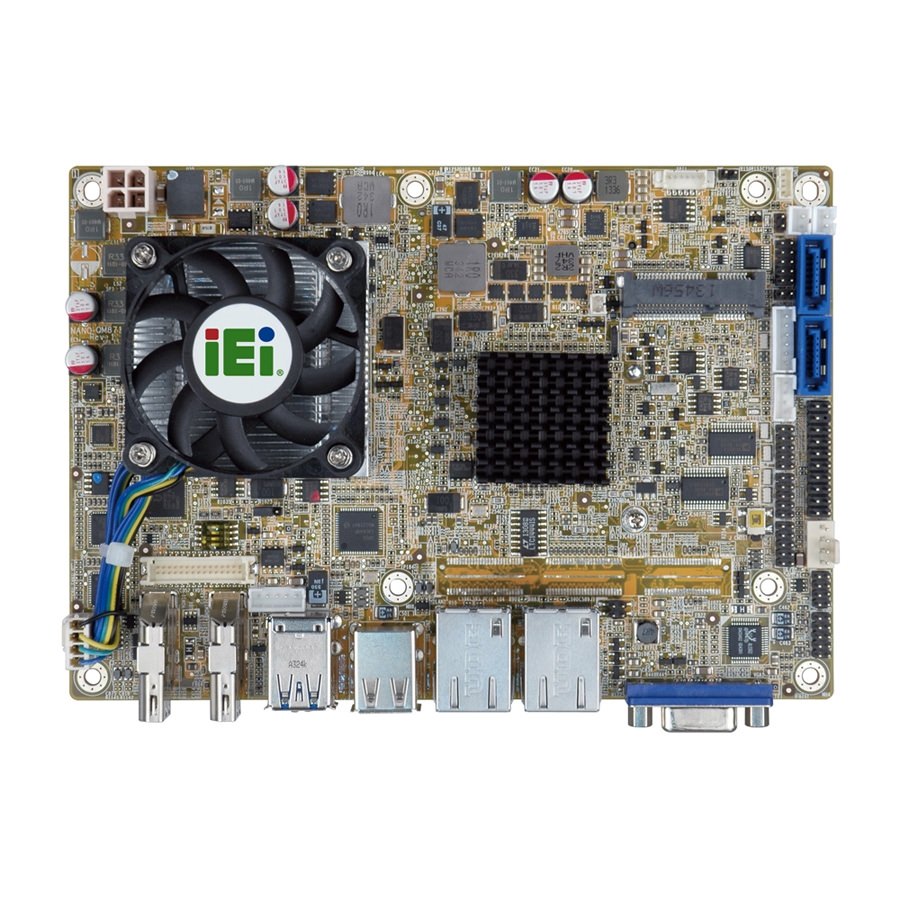

NANO-QM871-i1 EPIC Embedded Board

  • 4th Gen Intel® Mobile Core™ i7/i5/i3 On-Board Processor
  • Intel® QM87 Chipset
  • 1x 204-pin DDR3/DDR3L SDRAM SO-DIMM (Max. 8GB)
  • 2x Gigabit Ethernet Controller
  • 2x RS-232 Port and 1x RS-422/485 Port
  • Triple Display: Dual HDMI/VGA/LVDS
  • Support IPMI 2.0 with iRIS-1010 Module
Status: 4 to 8 Weeks Lead-Time
$669.00

NANO-QM871-i1 is an EPIC form factor embedded board with Intel QM87 chipset. It supports Intel 4th generation Mobile Core i7/i5/i3/Celeron on-board processor, DDR3/DDR3L 1600/1333MHz memory up to 8GB, dual HDMI and VGA three display ports, two USB3.0 ports, four USB2.0 ports, three COM ports and two SATA 6.0Gbps ports. It is ideal for high performance and space concernd applications.

NANO-QM871-i1 is an EPIC form factor embedded board with Intel QM87 chipset. It supports Intel 4th generation Mobile Core i7/i5/i3/Celeron on-board processor, DDR3/DDR3L 1600/1333MHz memory up to 8GB, dual HDMI and VGA three display ports, two USB3.0 ports, four USB2.0 ports, three COM ports and two SATA 6.0Gbps ports. It is ideal for high performance and space concernd applications.

Products Specifications
Attribute nameAttribute value
CPUIntel® 4th Gen Core™ i Mobile
ChipsetIntel® QM87
Memory1x 204-pin DDR3L SO-DIMM
Max Memory8GB
BIOSUEFI
Graphics EngineIntel® HD Integrated Graphics
Super I/OFintek F81866
Display Interface2x HDMI (Up to 2500x1600@60Hz)
1x VGA (Up to 1920x1200@60Hz)
1x 18/24bit Dual Channel LVDS (Up to 1920x1200@60Hz)
LAN2x Gigabit Ethernet LAN Port
iAMT (Intel Active Management Technology)iAMT 9.0
RS-2322x RS-232
RS-422/4851x RS-422/485
USB3.02x USB3.0
USB2.04x USB2.0
SATA 6Gb/s2x SATA 6Gb/s Port
Expansion1x Full-Size PCIe Mini Card Slot
SMBus1 x 4-Pin Wafer
Digital I/O8-bit Digital I/O (4-bit Input, 4-bit Output)
Fan Connector1x CPU Fan Connector (4 Pin)
1x System Fan Connector (4 Pin)
AudioRealtek ALC662 HD Audio Codec
Watchdog TimerSoftware Programmable supports 1~255 Sec. System Reset
Power Supply12V DC Input Only
Operating Temperature14°F ~ 140°F (-10°C ~ 60°C)
Humidity5% ~ 95% Relative Humidity, Non-Condensing
Dimensions4.53" x 6.50"
Weight (Net/Gross)0.77 lbs / 1.87 lbs (0.35 Kg / 0.85 Kg)
iRIS Remote Management Module1x iRIS-1010 Slot
