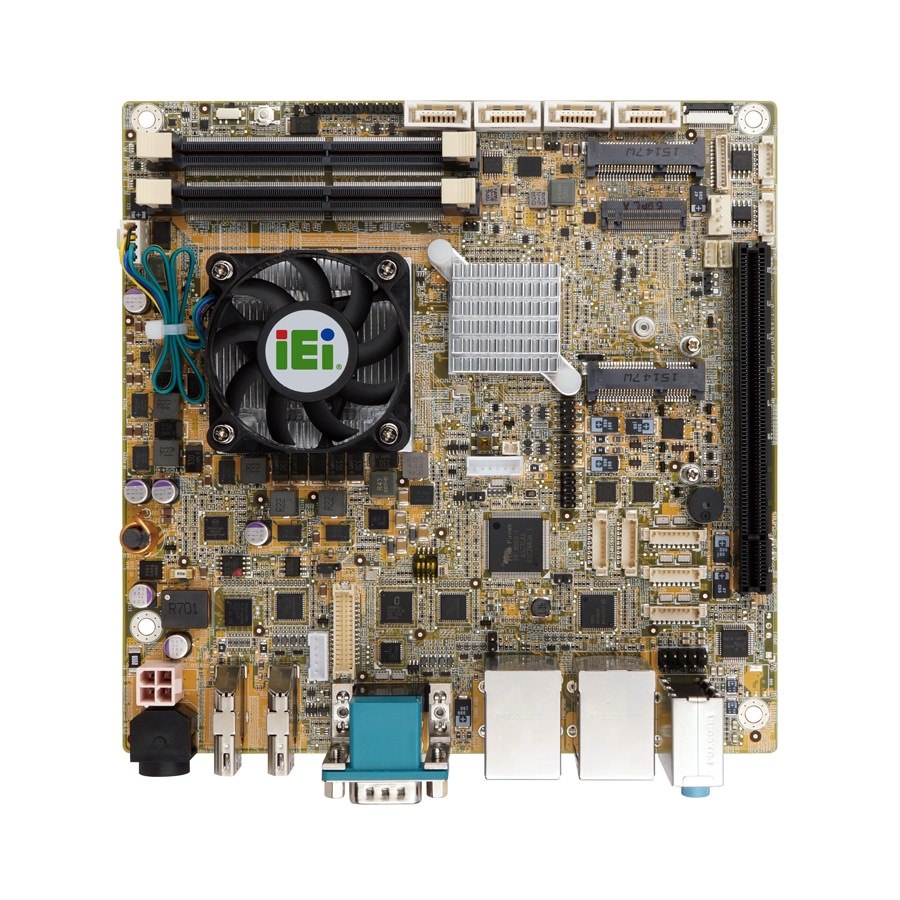

KINO-DQM170 Industrial Mini-ITX Motherboard

  • Support Intel® 6th Gen Core™ Mobile i7/i5/i3/Celeron Processor
  • Intel® QM170 Chipset
  • 2x 260-pin DDR4 SDRAM SO-DIMMs (Max. 64GB)
  • 2x Gigabit Ethernet Controller
  • 4x RS-232 and 2x RS-232/422/485 Port
  • Support HDMI 2.0 4K Ultra HD Display
Status: 4 to 8 Weeks Lead-Time
$809.00

KINO-DQM170 is an industrial Mini-ITX motherboard with Intel QM170 chipset. It supports 6th generation LGA1151 Intel Skylake Core i7/i5/i3/Celeron processor, dual channel DDR4 2133MHz memory up to 64GB, four USB3.0 ports, four USB2.0 ports, six COM ports, four SATA 6.0Gbps with RAID supported. It also supports HDMI 2.0 which can provide 4K Ultra HD display with 60Hz. It is ideal for high performance and reliability concernd applications.

KINO-DQM170 is an industrial Mini-ITX motherboard with Intel QM170 chipset. It supports 6th generation LGA1151 Intel Skylake Core i7/i5/i3/Celeron processor, dual channel DDR4 2133MHz memory up to 64GB, four USB3.0 ports, four USB2.0 ports, six COM ports, four SATA 6.0Gbps with RAID supported. It also supports HDMI 2.0 which can provide 4K Ultra HD display with 60Hz. It is ideal for high performance and reliability concernd applications.

Products Specifications
Attribute nameAttribute value
CPUIntel® 6th Gen Core™ i Mobile
ChipsetIntel® QM170
Memory2x 260-pin DDR4 2133/1866MHz SO-DIMMs
Max Memory64GB
BIOSUEFI
Graphics EngineIntel® HD Integrated Graphics
Display Interface1x HDMI 2.0 up to 4096x2160@60Hz
2x HDMI 1.4 up to 4096x2160@24Hz
1x 18/24-bit Dual Channel LVDS
LAN2x Gigabit Ethernet LAN Port
iAMT (Intel Active Management Technology)iAMT 11.0
RS-2324x RS-232
RS-232/422/4852x RS232/422/485
USB3.04x USB3.0
USB2.04x USB2.0 (4 by Pin Header)
SATA 6Gb/s4x SATA 6Gb/s Port with RADI 0/1/5/10
Expansion1x PCIe x16
1x Full-Size PCIe Mini Slot
1x Half-Size PCIe Mini Slot
SMBus1 x 4-Pin Wafer
Digital I/O8-bit Digital I/O (4-bit Input, 4-bit Output)
Watchdog TimerSoftware Programmable supports 1~255 Sec. System Reset
Operating Temperature-4°F ~ 140°F (-20°C ~ 60°C)
Humidity5% ~ 95% Relative Humidity, Non-Condensing
Dimensions6.69" x 6.69" (170mm x 170mm)
Weight (Net/Gross)0.99 lbs / 1.98 lbs (0.45 Kg / 0.9 Kg)
