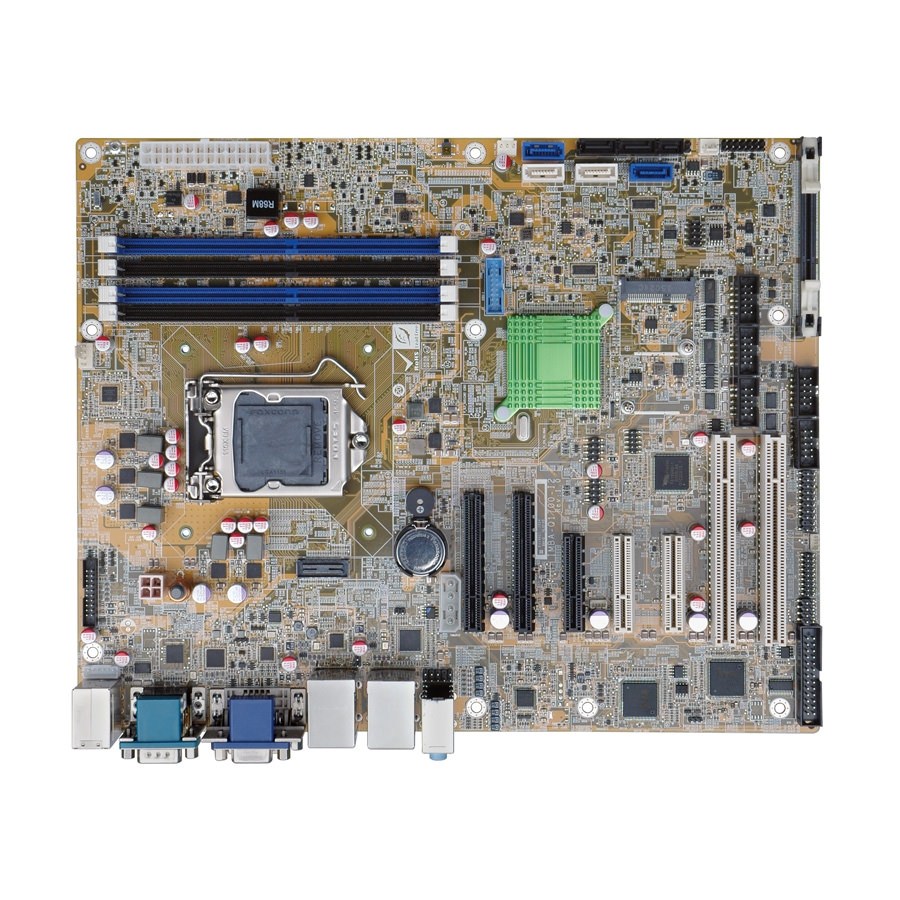

IMBA-C2360-i2 Industrial ATX Motherboard

IMBA-C2360-I2 Industrial ATX Motherboard IMBA-C2360-I2 Industrial ATX Motherboard I/O
  • Support Intel® 6th Gen Xeon® E3-1200, Core™ i3/Pentium/Celeron Processor
  • Intel® C236 Chipset
  • 4x 288-pin DDR4 SDRAM DIMMs (Max. 64GB)
  • 2x Gigabit Ethernet Controller
  • 4x RS-232 and 2x RS-232/422/485 Port
  • Support DVI-D + HDMI + VGA Triple Display
  • Support IPMI 2.0 via iRIS-2400 Module
Status: 4 to 8 Weeks Lead-Time
Product tags

IEI iRIS (IEI Remote Intelligent System) is a remote control technology which is IPMI 2.0 compliant. IPMI (Intelligent Platform Management Interface) is a standardized computer system interface for Out-of-Band Management of computer systems and monitoring of their operation. It allows managing power-off or unresponsive systems through network. iRIS is hardware-level remote control technology, so you don’t need go into operating system (OS) or login shell in order to implement remote control.

$505.00

IMBA-C2360-i2 is an industrial ATX motherboard with Intel C236 chipset. It supports 6th generation LGA1151 Intel Skylake Xeon E3-1200 and Core i3/Pentium/Celeron processor, dual channel DDR4 2133MHz memory up to 64GB, four USB3.0 ports, six USB2.0 ports, six COM ports, six SATA 6.0Gbps with RAID supported and one mSATA 6Gbps ports. It also supports IPMI 2.0 via optional iRIS-2400 model which can provide remote system management function. It is ideal for high performance and reliability concernd applications.

IMBA-C2360-i2 is an industrial ATX motherboard with Intel C236 chipset. It supports 6th generation LGA1151 Intel Skylake Xeon E3-1200 and Core i3/Pentium/Celeron processor, dual channel DDR4 2133MHz memory up to 64GB, four USB3.0 ports, six USB2.0 ports, six COM ports, six SATA 6.0Gbps with RAID supported and one mSATA 6Gbps ports. It also supports IPMI 2.0 via optional iRIS-2400 model which can provide remote system management function. It is ideal for high performance and reliability concernd applications.

Products Specifications
Attribute nameAttribute value
CPUIntel® 6th Gen Core™ i
CPU SocketLGA1151
ChipsetIntel® C236
Memory4x 288-pin DDR4 2133MHz DIMMs
Max Memory64GB
BIOSUEFI
Graphics EngineIntel® HD Integrated Graphics
Display Interface1x DVI-D, 1x VGA, 1x HDMI
LAN2x Gigabit Ethernet LAN Port
iAMT (Intel Active Management Technology)iAMT 11.0
RS-2324x RS-232
RS-232/422/4852x RS232/422/485
USB3.06x USB3.0
USB2.06x USB2.0 (2 on Rear, 4 by Pin Header)
SATA 6Gb/s6x SATA 6Gb/s Port
Expansion2x PCIe x8
3x PCIe x4
2x PCI
SMBus1 x 4-Pin Wafer
TPM (Optional)2 x 10-Pin Header
Digital I/O8-bit Digital I/O (4-bit Input, 4-bit Output)
Watchdog TimerSoftware Programmable supports 1~255 Sec. System Reset
Operating Temperature-4°F ~ 140°F (-20°C ~ 60°C)
Humidity5% ~ 95% Relative Humidity, Non-Condensing
Dimensions12" x 9.6"
iRIS Remote Management Module1x iRIS-2400 Slot
