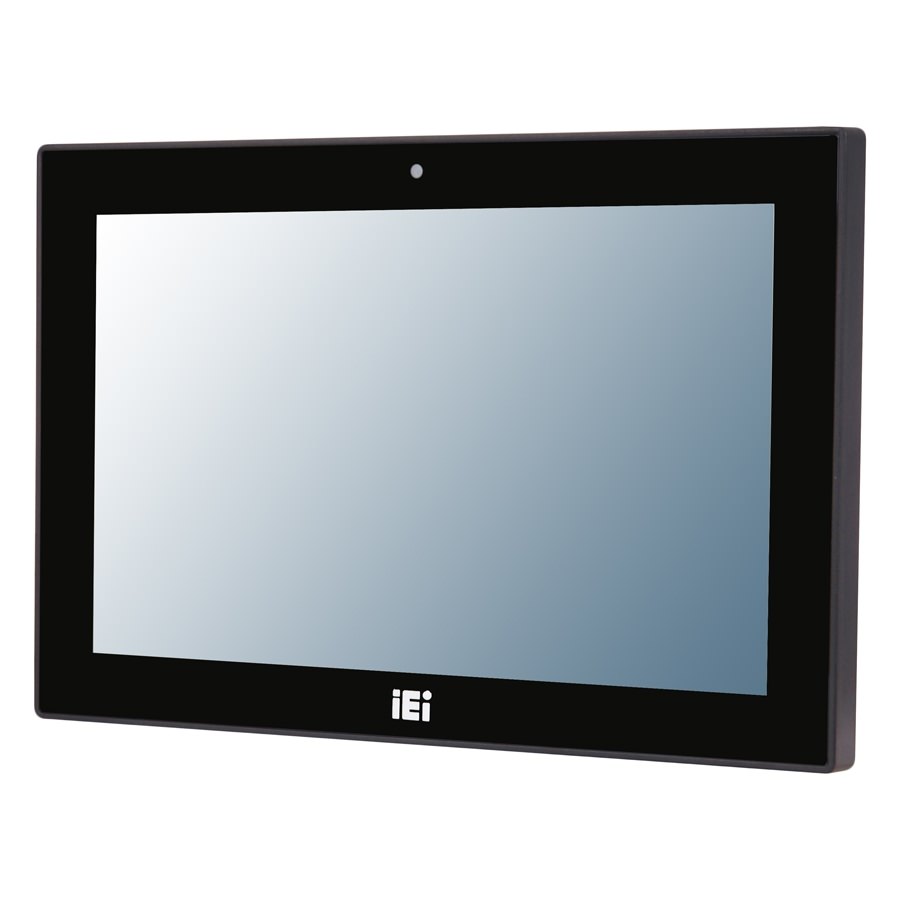

AFL3-W10A-BT 10.1" Fanless Touch Panel PC

  • 10.1" 1280x800 TFT LCD with Projected Capacitive Touch Screen
  • Intel® Celeron® J1900 2.0GHz Quad Core Processor
  • 64GB Industrial Grade mSATA Solid State Drive
  • 2GB DDR3L 1600MHz SO-DIMM Memory
  • Built-in 802.11a/b/g/n/ac Wireless LAN Module
  • Selectable AT/ATX Power Mode
  • IP64 Compliant Front Bezel
Status: 4 to 8 Weeks Lead-Time
$1,109.00

AFL3-W10A-BT is an ultra slim and power efficient industrial fanless panel PC which supports Intel Celeron J1900 2.0GHz quad core processor, 10.1" 1280x800 (16:10) LED backlight projected capacitive touch screen, two gigabit Ethernet ports, IEEE802.11a/b/g/n/ac wireless LAN, two USB3.0 and two COM ports. It also supports Microsoft Windows 7 Embedded and Windows 8 Embedded operating systems. AFL3-W10A-BT is suitable for a wide range of industrial and commercial applications in the market, such as POS, Kiosk, transportation and building automation systems.

AFL3-W10A-BT is an ultra slim and power efficient industrial fanless panel PC which supports Intel Celeron J1900 2.0GHz quad core processor, 10.1" 1280x800 (16:10) LED backlight projected capacitive touch screen, two gigabit Ethernet ports, IEEE802.11a/b/g/n/ac wireless LAN, two USB3.0 and two COM ports. It also supports Microsoft Windows 7 Embedded and Windows 8 Embedded operating systems. AFL3-W10A-BT is suitable for a wide range of industrial and commercial applications in the market, such as POS, Kiosk, transportation and building automation systems.

Products Specifications
Attribute nameAttribute value
LCD Size10.1" Wide Screen
Max Resolution1280 x 800
Brightness350nits
Contrast Ratio800:1
LCD Color16.2M
Pixel Pitch (mm)0.1695(H) x 0.1695(V)
Viewing Angle (H-V)170º(H) / 170º(V)
Backlight MTBF15000 hrs
Touch ScreenProjected Capacitive Type (USB Interface)
Touch ControllerEETI EXC7200
CPUIntel® Celeron® J1900
Memory2GB DDR3L SO-DIMM
Max Memory8GB DDR3L SO-DIMM
Ethernet ControllerRealtek RTL8111E PCIe GbE Controller
Audio CodecRealtek ALC892 HD Audio Codec
RS232 COM Port1x RS232 (RJ45)
RS232/422/485 COM Port1x RS232/422/485 (DB9)
USB 3.0 Port2x USB 3.0
Gigabit LAN Port2x Gigabit LAN Port (RJ-45)
AudioAMP 2W (Internal Speaker)
SSDmSATA
WirelessIEEE802.11 a/b/g/n/ac 1T1R Wireless LAN Module
Construction MaterialPC + ABS Plastic Front Frame
MountingPanel, Wall, Stand and Arm VESA 75mm x 75mm
Front Panel ColorBlack C
Dimension (WxHxD)10.32" x 7.13" x 1.65" / 262mm x 181mm x 42mm
Weight2.34 lbs / 1.06 Kg
Operating Temperature14°F ~ 122°F (-10°C~50°C)
Storage Temperature-4°F ~ 140°F (-20°C~60°C)
Humidity10% to 95% (Non-Condensing)
IP LevelIP64 Compliant Front Panel
Safety & EMCCE/FCC
Power Adapter36W Power Adapter Input: 90VAC~264VAC, 50/60Hz
Power Requirement9 ~ 30 VDC
