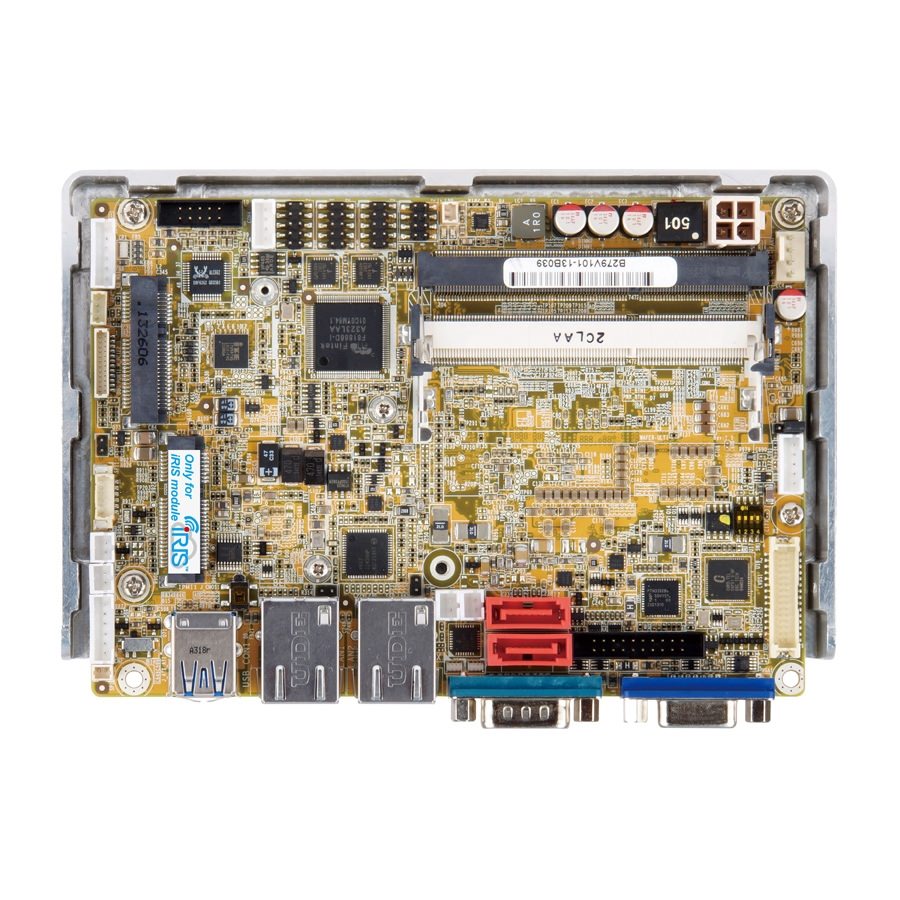

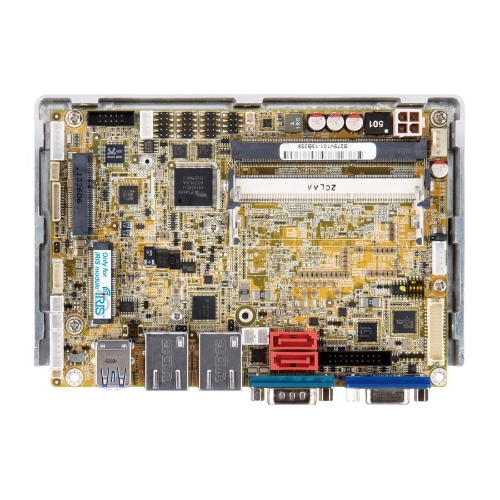

WAFER-ULT-i1 3.5" Embedded Board

  • Built-in Intel® 4th Gen Mobile ULT On-Board Processor
  • 2x 204-pin DDR3 SDRAM SO-DIMM (Max. 16GB)
  • 2x Gigabit Ethernet Controller
  • 3x RS-232 and 1x RS-422/485 Port
  • 1x PCIe Mini Card (mSATA Support)
  • Support Triple Independent Display via LVDS, VGA and iDP
  • 12V Only Single Design with AT/ATX Mode Support
Status: 1 to 2 Weeks Lead-Time

IEI iRIS (IEI Remote Intelligent System) is a remote control technology which is IPMI 2.0 compliant. IPMI (Intelligent Platform Management Interface) is a standardized computer system interface for Out-of-Band Management of computer systems and monitoring of their operation. It allows managing power-off or unresponsive systems through network. iRIS is hardware-level remote control technology, so you don’t need go into operating system (OS) or login shell in order to implement remote control.

$519.00
Product tags

WAFER-ULT-i1 is a 3.5" embedded board which built-in Intel 4th generation ULT SoC processor, DDR3 1333/1066MHz memory up to 16GB, one PCIe mini card slot for mSATA SSD storage, two USB3.0 ports, two USB2.0 ports, four COM ports and two SATA 6.0Gbps ports. It is ideal for high performance and space concerned applications.

WAFER-ULT-i1 is a 3.5" embedded board which built-in Intel 4th generation ULT SoC processor, DDR3 1333/1066MHz memory up to 16GB, one PCIe mini card slot for mSATA SSD storage, two USB3.0 ports, two USB2.0 ports, four COM ports and two SATA 6.0Gbps ports. It is ideal for high performance and space concerned applications.

PRICE BREAKS - The more you buy, the more you save
Quantity
1+
10+
100+
Price Starting From
$519.00
$509.00
$505.00
Products Specifications
CPU Intel® 4th Gen Core™ i Mobile
CPU Socket BGA1168
Memory 2x 204-pin DDR3L 1600/1333MHz DIMMs
Max Memory 16GB
BIOS UEFI
Graphics Engine Intel® HD Graphics 5000
Super I/O Fintek F81866
Display Interface 1x VGA, 1x 18/24-bit Dual Channel LVDS
LAN 2x Gigabit Ethernet LAN Port
iAMT (Intel Active Management Technology) iAMT 9.0
RS-232 3x RS-232
RS-422/485 1x RS-422/485
USB3.0 2x USB3.0
USB2.0 2x USB2.0
SATA 6Gb/s 2x SATA 6Gb/s Port
Expansion 1x Full-Size PCIe Mini Card Slot
Digital I/O 8-bit Digital I/O (4-bit Input, 4-bit Output)
Fan Connector 1x 4-Pin System Fan Connector
Audio Realtek ALC662 HD Audio Codec
Watchdog Timer Software Programmable supports 1~255 Sec. System Reset
Power Supply 12V DC Input Only
Power Consumption +12V@2.72A (Intel® Core™ i5-4300U CPU, 2x 8GB 1600MHz DDR3 Memory)
Operating Temperature 14°F ~ 140°F (-10°C ~ 60°C)
Humidity 5% ~ 95% Relative Humidity, Non-Condensing
Dimensions 5.75" x 4.02"
Weight (Net/Gross) 0.55 lbs / 0.25 Kg
iRIS Remote Management Module 1x iRIS-1010 Slot
