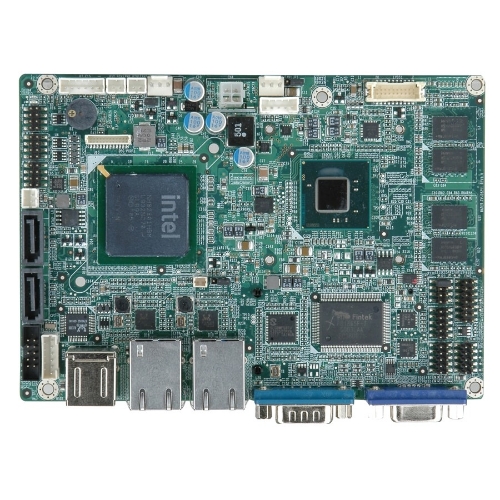

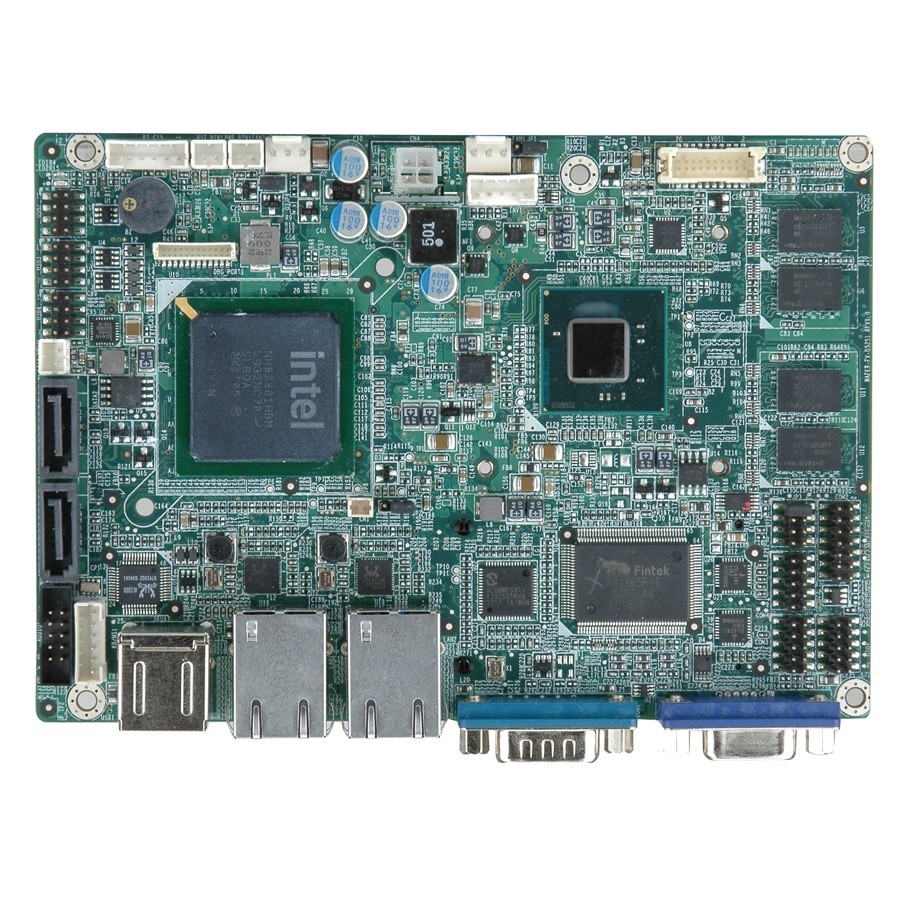

WAFER-PV-D4251 3.5" Embedded Board

  • Built-in Intel® Atom™ D425 1.8GHz Processor
  • Intel® ICH8M Chipset
  • On-Board 2GB DDR3 SDRAM
  • 2x Gigabit Ethernet Controller
  • 3x RS-232 and 1x RS-232/422/485 Port
  • 1x PCIe Mini Card
  • One Key Recovery Solution for Backup and Recover
Status: 1 to 2 Weeks Lead-Time
$330.00
Product tags

WAFER-PV-D4251 is a 3.5" embedded board which built-in Intel Atom D425 1.8GHz processor, on-board 2GB 800MHz DDR3 memory, VGA and LVDS dual display, one CF Type II slot, eight USB2.0 ports, three COM ports and two SATA 3.0Gbps ports. It is ideal for low power consumption and space concernd applications.

Specification

CPU Intel® Atom™ D425 1.8GHz Processor
System Chipset Intel® ICH8M
System Memory On-Board 2GB 800MHz DDR3 SDRAM
BIOS UEFI BIOS
Ethernet 2x Gigabit Ethernet LAN Port
I/O Interface

3x RS-232

1x RS-232/422/485

8x USB2.0

2x SATA3.0Gbps

1x CF Type II

Audio Realtek ALC888HD Audio Codec
Display Interface

1x VGA

1x 18-bit Single Channel LVDS

Power Supply 12V DC (AT/ATX Power Selected by Jumper)
Operating Temperature

-4ºF ~ 149ºF (-20ºC ~ 65ºC) with Free Air

-4ºF ~ 158ºF (-20ºC ~ 70ºC) with Force Air

Operating Humidity 5% ~ 95% Relative Humidity, Non-Condensing
Dimension 5.75" x 4.02" (146mm x 102mm)
Net Weight 0.37lbs (0.17kg)
GW Weight 1.43lbs (0.65kg)

Packing List

1x WAFER-PV-D4251 3.5" Embedded Board
1x SATA with Power Cable (P/N: 32801-000201-100-RS)
1x KB/MS Cable (P/N: 32000-023800-RS)
1x Power Cable (P/N: 32100-087100-RS)
1x Au Cable (P/N: 32001-002700-200-RS)
1x QIG
1x Mini Jumper Pack
1x Utility CD
1x One Key Recovery CD
