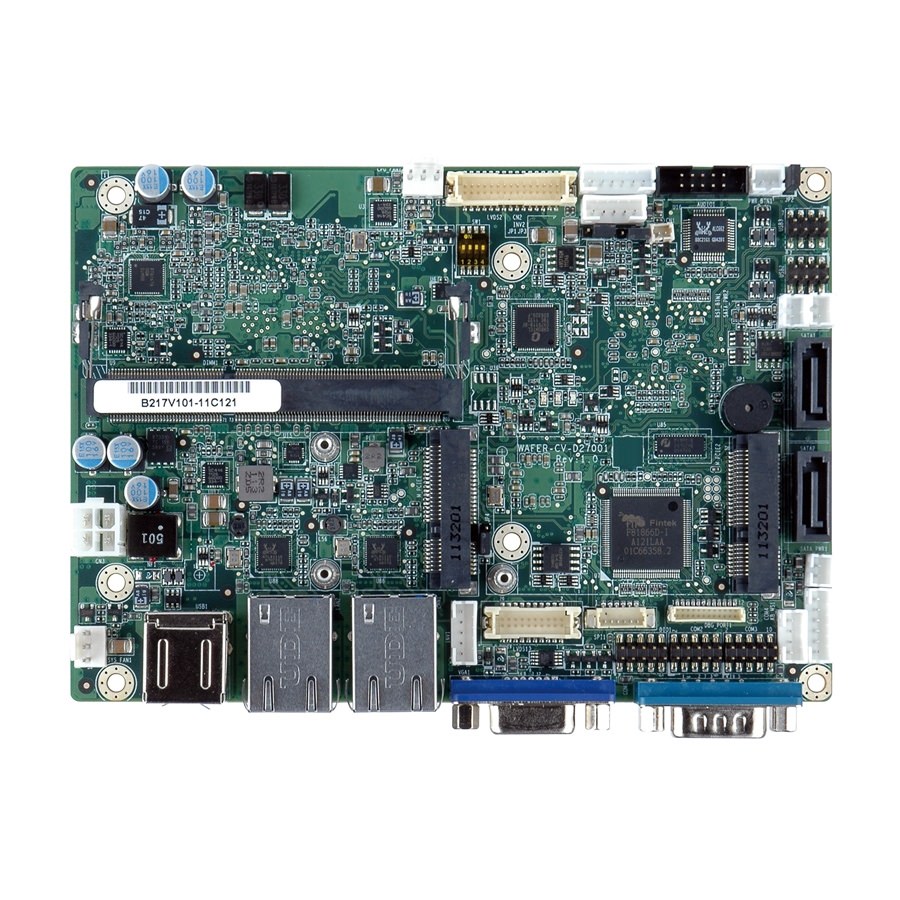

WAFER-CV-D25501 3.5" Embedded Board

  • Built-in Intel® Atom™ D2550 1.86GHz Processor
  • Intel® NM10 Chipset
  • 1x 204-pin DDR3 SDRAM SO-DIMM (Max. 4GB)
  • 2x Gigabit Ethernet Controller
  • 3x RS-232 and 1x RS-422/485 Port
  • 2x PCIe Mini Card
  • One Key Recovery Solution for Backup and Recover
Status: 1 to 2 Weeks Lead-Time
$320.00
Product tags

WAFER-CV-D25501 is a 3.5" embedded board which built-in Intel Atom D2550 1.86GHz dual core processor, DDR3 1333/1066MHz memory up to 4GB, one PCIe mini card slot for mSATA SSD storage, six USB2.0 ports, four COM ports and two SATA 3.0Gbps ports. It is ideal for high performance and space concernd applications.

Packing List

1x WAFER-CV-D25501 3.5" Embedded Board
2x SATA with Power Cable (P/N: 32801-000201-100-RS)
1x RS-232 Cable (P/N: 32205-002700-100-RS)
1x KB/MS Cable (P/N: 32000-023800-RS)
1x Power Cable (P/N: 32100-087100-RS)
1x Screw Set for PCIe Mini Card
1x Enclosure Heatsink
1x QIG
1x Mini Jumper Pack
1x Utility CD
1x One Key Recovery CD

WAFER-CV-D25501 is a 3.5" embedded board which built-in Intel Atom D2550 1.86GHz dual core processor, DDR3 1333/1066MHz memory up to 4GB, one PCIe mini card slot for mSATA SSD storage, six USB2.0 ports, four COM ports and two SATA 3.0Gbps ports. It is ideal for high performance and space concernd applications.

Packing List

1x WAFER-CV-D25501 3.5" Embedded Board
2x SATA with Power Cable (P/N: 32801-000201-100-RS)
1x RS-232 Cable (P/N: 32205-002700-100-RS)
1x KB/MS Cable (P/N: 32000-023800-RS)
1x Power Cable (P/N: 32100-087100-RS)
1x Screw Set for PCIe Mini Card
1x Enclosure Heatsink
1x QIG
1x Mini Jumper Pack
1x Utility CD
1x One Key Recovery CD
Products Specifications
CPU Intel® Dual Core Atom™
Chipset Intel® NM10
Memory 1x 204-pin DDR3 SO-DIMM
Max Memory 4GB
BIOS UEFI
Graphics Engine Intel® GMA 3650 Graphics
Super I/O Fintek F81866
Display Interface 1x VGA, 2x 24-bit LVDS
LAN 2x Gigabit Ethernet LAN Port
RS-232 3x RS-232
RS-422/485 1x RS-422/485
USB2.0 6x USB2.0
SATA 3Gb/s 2x SATA 3Gb/s Port
Expansion 1x Half-Size PCIe Min Card Slot
Digital I/O 8-bit Digital I/O (4-bit Input, 4-bit Output)
Fan Connector 1x 3-Pin CPU Fan Connector, 1x 3-Pin System Fan Connector
Audio Realtek ALC662 HD Audio Codec
Watchdog Timer Software Programmable supports 1~255 Sec. System Reset
Power Supply 12V DC Input Only
Operating Temperature -4°F ~ 140°F (-20°C ~ 60°C)
Humidity 5% ~ 95% Relative Humidity, Non-Condensing
Dimensions 5.75" x 4.02"
Weight (Net/Gross) 0.55 lbs / 0.25 Kg
