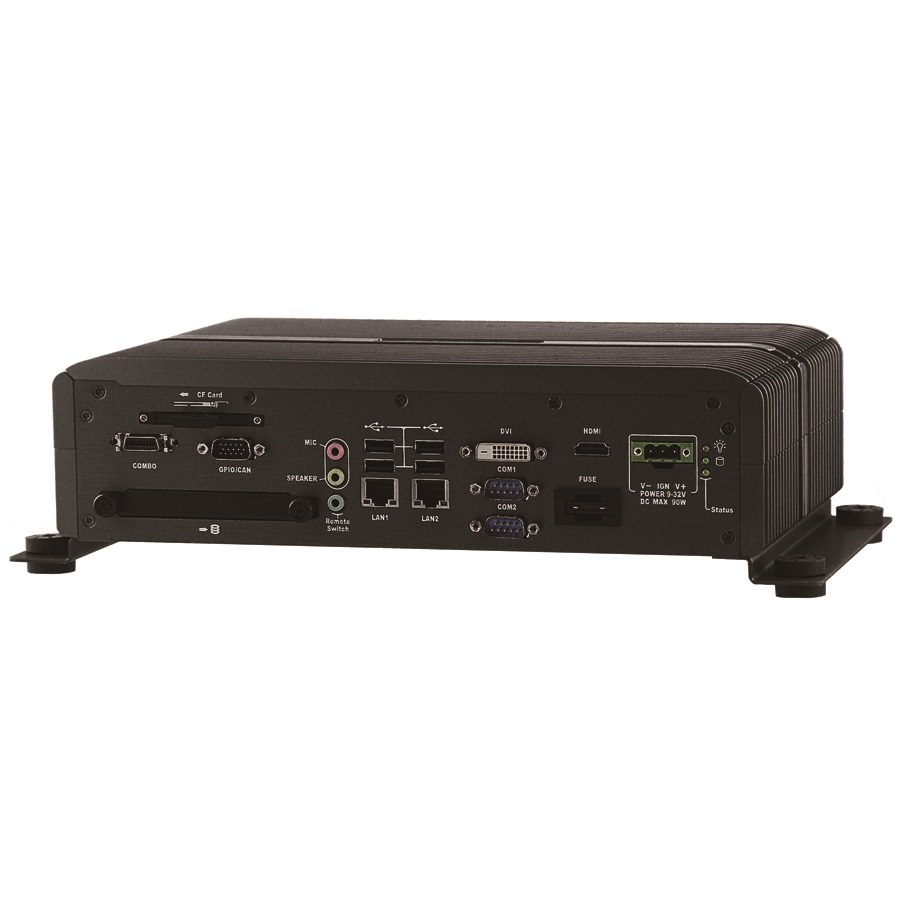

AR-V6100FL In-Vehicle Embedded PC

  • Intel® Celeron® B810 1.6GHz Processor
  • Support Intel® 2nd Generation Mobile Core™ i7/i5/i3 Processor
  • 2GB DDR3 1600MHz SO-DIMM Memory
  • Intel® 120GB SATA 6.0Gbit/s 2.5" Solid State Drive
  • 4x USB2.0 Port
  • 1x RS-232 and 1x RS-232/422/485 Port
  • Support GPS/3.5G/WiFi/Bluetooth Option Module
Status: 4 to 8 Weeks Lead-Time
$1,055.00

The AR-V6100FL is a high performance in-vehicle fanless embedded PC which supports 2nd generation Intel mobile Core i7/i5/i3 processor. It has 2GB DDR3 SO-DIMM memory (Max. 8GB), one RS-232 and one RS-232/422/485 port, four USB2.0 ports, two Intel Gigabit Ethernet LAN port. The AR-V6100FL is suitable for a wide range of in-vehicle applications in the market, such as taxi, police car, ambulance, fire fighter trunk, heavy duty truck, bus, construction vehicle and train.

The AR-V6100FL is a high performance in-vehicle fanless embedded PC which supports 2nd generation Intel mobile Core i7/i5/i3 processor. It has 2GB DDR3 SO-DIMM memory (Max. 8GB), one RS-232 and one RS-232/422/485 port, four USB2.0 ports, two Intel Gigabit Ethernet LAN port. The AR-V6100FL is suitable for a wide range of in-vehicle applications in the market, such as taxi, police car, ambulance, fire fighter trunk, heavy duty truck, bus, construction vehicle and train.

Products Specifications
Attribute nameAttribute value
Dimensions (WxDxH)12.20" x 7.68" x 3.15" / 310mm x 195mm x 80mm
Chassis System FanFanless
Chassis ConstructionMetal SPGC
CPUIntel® 2nd Gen Core™ i Mobile
ChipsetIntel® HM65
Memory2GB DDR3 SO-DIMM
Max Memory8GB DDR3 SO-DIMM
Hard Drive1x Swappable 2.5" SATA 6Gb/s Hard Drive Bay
CF1x CF Type I/II Slot Support UDMA33
USB 2.0 Port4x USB2.0
Gigabit LAN Port2x Gigabit LAN Port (RJ-45)
RS232 COM Port1x RS232 (DB9)
RS232/422/485 COM Port1x RS232/422/485 (DB9)
Digital I/O8-bit Digital I/O, 4-bit Input/4-bit Output
CAN-busSupport CAN 2.0A/2.0B Protocol
Display1x DVI-D, 1x HDMI, 1x VGA
Audio1x Line-Out, 1x Mic-In
Wireless802.11a/b/g/n (Optional)
Expansions2x PCIe Mini Slot (For Optional 3.5G / WiFi Module)
Watchdog Timer1~255 sec. Software Programmable
Power Input9~32VDC Power Input
Power ConsumptionMax 80W (i7 CPU)
Operating Temperature32°F ~ 140°F (0°C ~ 60°C)
Operating ShockIEC 60068-2-27, 50G 500m/s2 11MS, Operating with SSD
Operating VibrationIEC 60068-2-64, 5~500Hz, 3GRMS(CF/SSD), Operating with SSD
Weight (Net/Gross)13.22 lbs / 18.53 lbs
Safety/EMCCE, FCC Class B, E-Mark
Supported OSWindows XP, Windows 7, Fedora 14, Ubuntu 10
